Low Voltage / Security Design Services
Creating Low Voltage System Design For Electrical Panels
Providing reliable and low-voltage design that makes installation and implementation easy
From panel design to cabling to building automation and integration services, Edifice Expert has the low-voltage/security expertise and experience needed to successfully implement solutions for virtually any size of the building.
The best part that needs to be known over here is that the United States continues to be one of the top consumers of low-voltage DC systems. On the other side, having a low voltage system in the building comes with a full range of required safety and efficiency, including temperature-rise limits and electromagnetic compatibility that can be seen instantly using our low voltage/security design before the construction of the system begins.
Getting the right low voltage/security design will directly reduce the number of change orders, design revisions, and unexpected problems, all adding up to cost savings. On the other hand, it will also lead to successful installation and implementation quickly by minimizing the time spent on-site, and your project gets completed quickly.
Why Choose Edifice Expert?
100% Design Data Security
Your design model is completely safe with us.
15+ Years of BIM Expertise
Delivering efficient & quality BIM models for 15+ years.
Adherence To Industry Design Standards
Providing building models that adhere to industry compliance effectively.
Quick Turnaround Time
We accomplish your project through quick turnaround time, and on budget.
Advanced Tech & Software Access
Creating BIM models using all the advanced level technology and software.
Fast & Customized Solution
Fast and customized level of details that contribute to the cost-effective usage of data.
Extensive Domain Knowledge
We possess extensive knowledge of engineering standards and design & construction methodologies.
Benefits of Low Voltage / Security Design Services
Low voltage systems use less power and thus reduces energy costs.
Low voltage systems are comprised of electrical equipment that uses 50 volts (V) of electricity or less. The other common low voltages include 48 V, 24 V, and 12 V.
LV system is scalable & cost-effective system because of its small control panels.
Due to minimal voltage and installation, it is easy to upgrade LV system.
Low voltage cabling operates at lower voltages, which can reduce the risk of electrical fires.
Using BIM modeling all the clashes that might hinder the wiring have been resolved by making LV a consistent system.
Low Voltage BIM Services

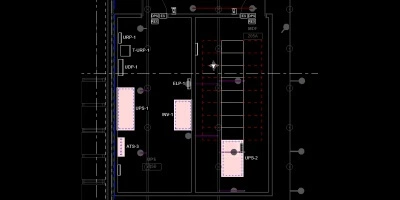

MDF Room Design / IDF Room Design
With the help of the BIM modeling, we will create a space where MDF and IDF rooms will be located, whereas the locations will be designed keeping in mind the accessibility and ease of routing of networks in the building. The MDF (Main distribution frame) room will further incorporate network supplies such as switches servers and routers, the IDF (Intermediate distribution frame) room will be utilized throughout the building by connecting with MDF via fiber optic cables.

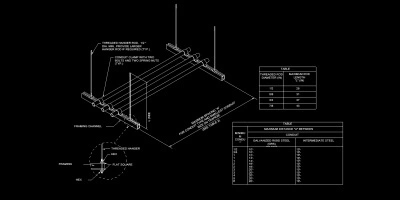

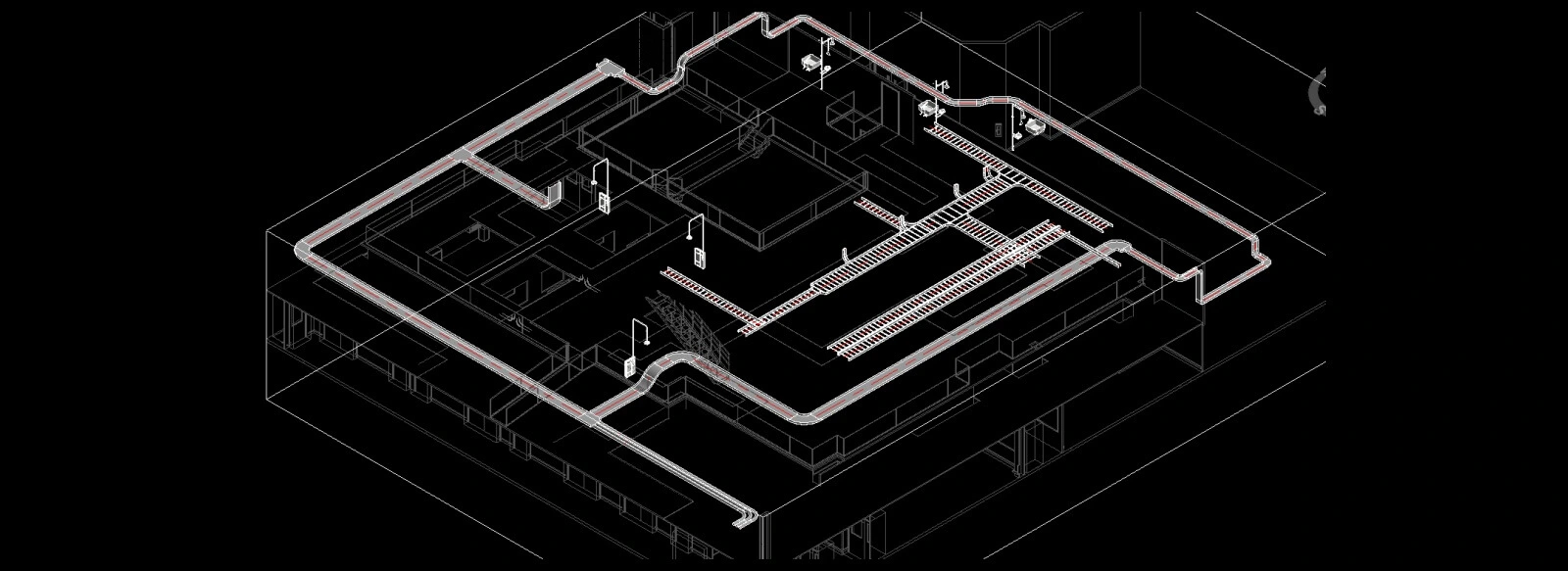

Cable Tray Layout
Surprisingly the cable tray market has grown more than 50% in the last 3 years, only because of the high usage of low-voltage cabling. We create cable tray layouts using BIM where we use aluminum material for cabling as it is lighter and the structural strength of it is equal to steel at half the weight.It is easier to cut and drill and it has a workable bend radius.

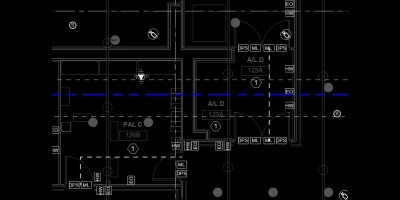

CCTV System Design
To achieve a comprehensive overview of CCTV design using low voltage we create a 3D model using BIM that will showcase the entire mechanism of CCTV along with sufficient power supplies, cable routers with minimum consumption of power. As a leading provider of low-voltage services, we understand the significance of integrating low-voltage systems in CCTV camera design while emphasizing on the protocols like safety and protection of your premises.

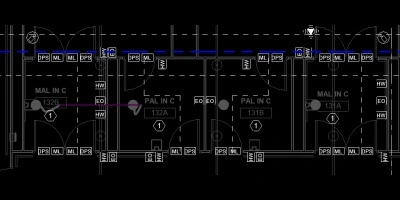

Access Control System Design
Do you want to know what the access control system looks like? We will make it done for you all virtually using BIM modeling. We will design the space where the access control system will be installed that has magnetic locks, door strikes, and other traditional devices to help control access to your building using only a LOW voltage system. This way it becomes easy for you get understand who can have access to your building, when, and how.

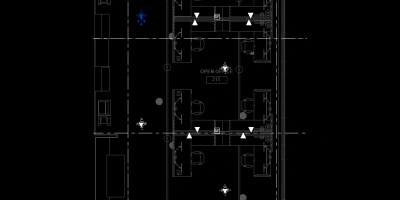

WAP System Design
With the help of the BIM model, we will create a space that will showcase the WAP (Wireless access points) device on walls or ceilings, as it is known that the power will not reach the walls or the ceilings to compensate for that thing we use PoE which is Power over Ethernet that passes electric power over twisted-pair ethernet cable to power devices such as wireless access points using low voltage system.

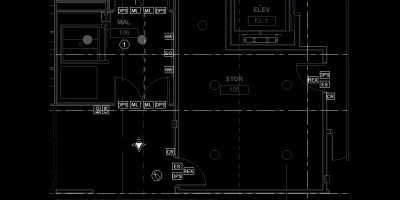

Security System Design
Having an integrated low-voltage security system comes with a diverse approach to providing great security to your building that can be clearly seen using our 3D model, the model further will give you an entire overview of security components starting from video surveillance, access control, intrusion detection, and environmental monitoring right before the installation of system begins. And when you have access to this layered approach be seeing all the threats and vulnerabilities in advance.

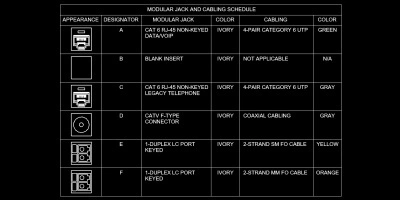

Low Voltage Security and Communication
The BIM model creates the building, including its Structural components, Architectural components, Electrical systems, Plumbing whereas using our Low-Voltage security and communication systems such as surveillance cameras, access control systems are all included as well in this model to provide enhanced collaboration and visualization of the system before the final project begins.This flow of mechanisms will create a smooth channel of communication between entities such as Engineers, Architects, and Contractors.
